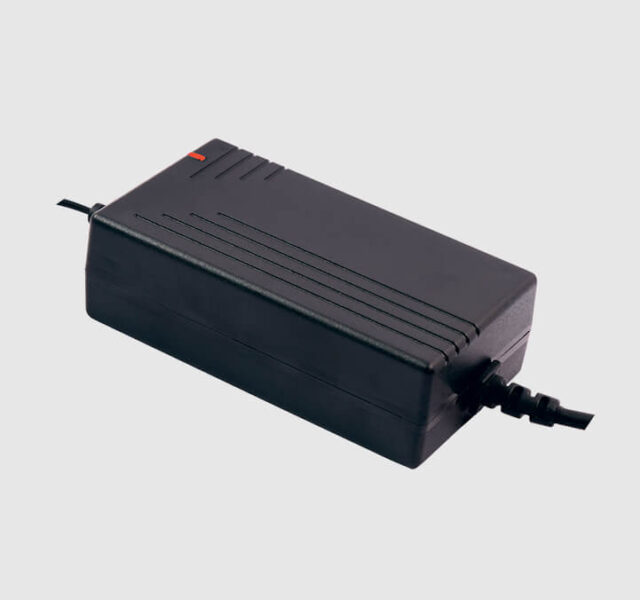

SMPS For Water Purifiers

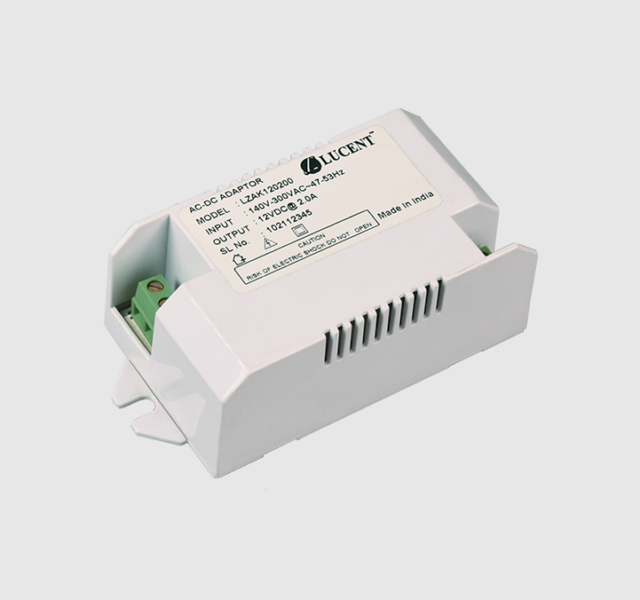

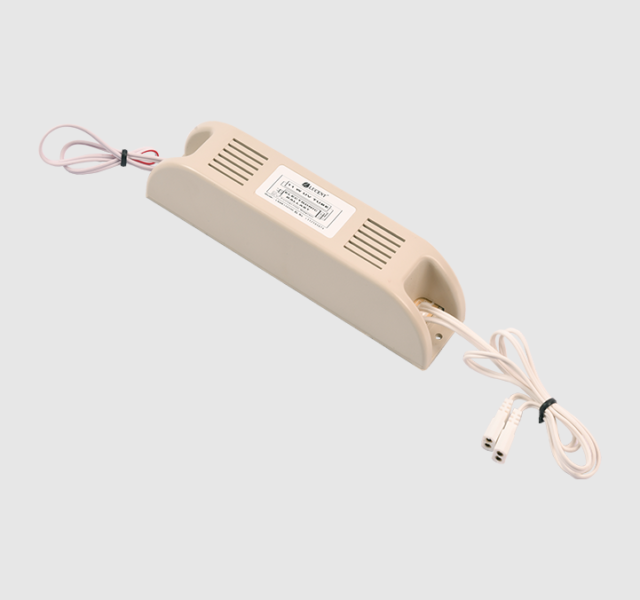

Adaptors For SMPS Water Purufiers Series
LE Series
These adapters are designed to meet the power needs of water purifiers. They can operate within a wide AC input range (100-300V AC) and withstand challenging power conditions in India. Their high-frequency switching technology ensures reliability, cost-effectiveness, compact size, and lightweight design.
Input Operating Range : 140 – 270VAC – 50/60Hz
Inrush Current: < 70A Peak @ 230VAC, Cold Start @ 25°C
Input Current : 0.80A rms @ 150VAC
| SL. NO. | ITEM Code | Description |
|---|---|---|
| 1 | LEAK240250 | 24Vdc @ 2.5Amps |
| 2 | LEAK240300 | 24Vdc @ 3.0Amps |
| 3 | LELK240250 | 24Vdc @ 2.5Amps |
| 4 | LELK240300 | 24Vdc @ 3.0Amps |
| 5 | LEHK240250 | 24Vdc @ 2.5Amps |
| 6 | LEAK480150 | 48Vdc @ 1.5Amps |
Key Features:
- Operates under low voltages
- ROHS Compliance approved and highly reliable
- Protected against excessive high voltage (up to 440VAC)
- Protection against overload, short circuit, over voltage, and over temperature
- Wider AC input range from 100VAC to 300VAC, ideal for Indian power conditions
- Undergoes rigorous testing including functional test, burning test, and high voltage breakdown test
